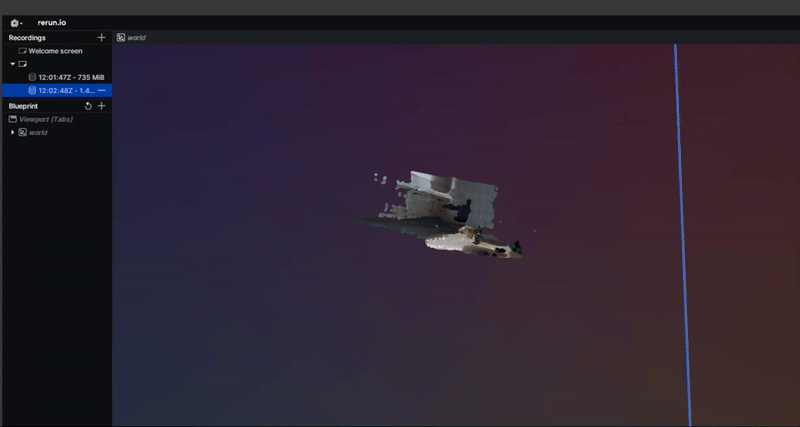

RGBD Point Cloud Visualization

View as Markdown

1import time
2import depthai as dai
3
4from argparse import ArgumentParser
5
6NEURAL_FPS = 8
7STEREO_DEFAULT_FPS = 30
8TOF_DEFAULT_FPS = 30
9
10parser = ArgumentParser()
11parser.add_argument("--webSocketPort", type=int, default=8765)
12parser.add_argument("--httpPort", type=int, default=8082)
13parser.add_argument("--depthSource", type=str, default="stereo", choices=["stereo", "neural", "tof"])
14args = parser.parse_args()
15
16with dai.Pipeline() as p:
17    remoteConnector = dai.RemoteConnection(
18        webSocketPort=args.webSocketPort, httpPort=args.httpPort
19    )
20
21    size = (640, 400)
22    if args.depthSource == "neural":
23        fps = NEURAL_FPS
24    elif args.depthSource == "tof":
25        fps = TOF_DEFAULT_FPS
26    else:
27        fps = STEREO_DEFAULT_FPS
28
29    if args.depthSource == "stereo":
30        color = p.create(dai.node.Camera).build(sensorFps=fps)
31        left = p.create(dai.node.Camera).build(dai.CameraBoardSocket.CAM_B, sensorFps=fps)
32        right = p.create(dai.node.Camera).build(dai.CameraBoardSocket.CAM_C, sensorFps=fps)
33        depthSource = p.create(dai.node.StereoDepth)
34        depthSource.setDefaultProfilePreset(dai.node.StereoDepth.PresetMode.DEFAULT)
35        depthSource.setRectifyEdgeFillColor(0)
36        depthSource.enableDistortionCorrection(True)
37        left.requestOutput(size).link(depthSource.left)
38        right.requestOutput(size).link(depthSource.right)
39    elif args.depthSource == "neural":
40        color = p.create(dai.node.Camera).build(sensorFps=fps)
41        left = p.create(dai.node.Camera).build(dai.CameraBoardSocket.CAM_B, sensorFps=fps)
42        right = p.create(dai.node.Camera).build(dai.CameraBoardSocket.CAM_C, sensorFps=fps)
43        depthSource = p.create(dai.node.NeuralDepth).build(left.requestOutput(size), right.requestOutput(size), dai.DeviceModelZoo.NEURAL_DEPTH_LARGE)
44    elif args.depthSource == "tof":
45        color = p.create(dai.node.Camera).build(dai.CameraBoardSocket.CAM_C, sensorFps=fps)
46        socket, preset_mode = dai.CameraBoardSocket.AUTO, dai.ImageFiltersPresetMode.TOF_MID_RANGE
47        depthSource = p.create(dai.node.ToF).build(socket, preset_mode)
48    else:
49        raise ValueError(f"Invalid depth source: {args.depthSource}")
50
51    rgbd = p.create(dai.node.RGBD).build(color, depthSource, size, fps)
52
53    remoteConnector.addTopic("pcl", rgbd.pcl, "common")
54    p.start()
55    remoteConnector.registerPipeline(p)
56
57    print("Pipeline started with depth source: ", args.depthSource)
58
59    while p.isRunning():
60        key = remoteConnector.waitKey(1)
61        if key == ord("q"):
62            print("Got q key from the remote connection!")
63            break

1#include <argparse/argparse.hpp>
2#include <csignal>
3#include <depthai/remote_connection/RemoteConnection.hpp>
4#include <iostream>
5
6#include "depthai/depthai.hpp"
7
8constexpr float NEURAL_FPS = 8.0f;
9constexpr float STEREO_DEFAULT_FPS = 30.0f;
10
11// Signal handling for clean shutdown
12static bool isRunning = true;
13void signalHandler(int signum) {
14    (void)signum;
15    isRunning = false;
16}
17
18int main(int argc, char** argv) {
19    // Initialize argument parser
20    argparse::ArgumentParser program("visualizer_rgbd", "1.0.0");
21    program.add_description("RGBD point cloud visualizer with configurable depth source");
22    program.add_argument("--webSocketPort").default_value(8765).scan<'i', int>().help("WebSocket port for remote connection");
23    program.add_argument("--httpPort").default_value(8082).scan<'i', int>().help("HTTP port for remote connection");
24    program.add_argument("--depthSource").default_value(std::string("stereo")).help("Depth source: stereo, neural, tof");
25
26    // Parse arguments
27    try {
28        program.parse_args(argc, argv);
29    } catch(const std::runtime_error& err) {
30        std::cerr << err.what() << std::endl;
31        std::cerr << program;
32        return EXIT_FAILURE;
33    }
34
35    // Get arguments
36    int webSocketPort = program.get<int>("--webSocketPort");
37    int httpPort = program.get<int>("--httpPort");
38    std::string depthSourceArg = program.get<std::string>("--depthSource");
39
40    // Validate depth source argument
41    if(depthSourceArg != "stereo" && depthSourceArg != "neural" && depthSourceArg != "tof") {
42        std::cerr << "Invalid depth source: " << depthSourceArg << std::endl;
43        std::cerr << "Valid options are: stereo, neural, tof" << std::endl;
44        return EXIT_FAILURE;
45    }
46
47    // Register signal handler
48    std::signal(SIGINT, signalHandler);
49
50    try {
51        // Create RemoteConnection
52        dai::RemoteConnection remoteConnector(dai::RemoteConnection::DEFAULT_ADDRESS, webSocketPort, true, httpPort);
53
54        // Create pipeline
55        dai::Pipeline pipeline;
56
57        float fps = STEREO_DEFAULT_FPS;
58        if(depthSourceArg == "neural") {
59            fps = NEURAL_FPS;
60        }
61
62        const std::pair<int, int> size = std::make_pair(640, 400);
63
64        // Create color camera
65        auto color = pipeline.create<dai::node::Camera>();
66        color->build(dai::CameraBoardSocket::AUTO, std::nullopt, fps);
67
68        // Create depth source based on argument
69        dai::node::DepthSource depthSource;
70
71        if(depthSourceArg == "stereo") {
72            auto left = pipeline.create<dai::node::Camera>();
73            auto right = pipeline.create<dai::node::Camera>();
74            auto stereo = pipeline.create<dai::node::StereoDepth>();
75
76            left->build(dai::CameraBoardSocket::CAM_B, std::nullopt, fps);
77            right->build(dai::CameraBoardSocket::CAM_C, std::nullopt, fps);
78
79            stereo->setSubpixel(true);
80            stereo->setExtendedDisparity(false);
81            stereo->setDefaultProfilePreset(dai::node::StereoDepth::PresetMode::DEFAULT);
82            stereo->setLeftRightCheck(true);
83            stereo->setRectifyEdgeFillColor(0);  // black, to better see the cutout
84            stereo->enableDistortionCorrection(true);
85            stereo->initialConfig->setLeftRightCheckThreshold(10);
86
87            left->requestOutput(size, std::nullopt, dai::ImgResizeMode::CROP)->link(stereo->left);
88            right->requestOutput(size, std::nullopt, dai::ImgResizeMode::CROP)->link(stereo->right);
89
90            depthSource = stereo;
91        } else if(depthSourceArg == "neural") {
92            auto left = pipeline.create<dai::node::Camera>();
93            auto right = pipeline.create<dai::node::Camera>();
94
95            left->build(dai::CameraBoardSocket::CAM_B, std::nullopt, fps);
96            right->build(dai::CameraBoardSocket::CAM_C, std::nullopt, fps);
97
98            auto neuralDepth = pipeline.create<dai::node::NeuralDepth>();
99            neuralDepth->build(*left->requestFullResolutionOutput(), *right->requestFullResolutionOutput(), dai::DeviceModelZoo::NEURAL_DEPTH_LARGE);
100
101            depthSource = neuralDepth;
102        } else if(depthSourceArg == "tof") {
103            auto tof = pipeline.create<dai::node::ToF>();
104            depthSource = tof;
105        }
106
107        // Create RGBD node using the unified build method with DepthSource variant
108        auto rgbd = pipeline.create<dai::node::RGBD>();
109        rgbd->build(color, depthSource, size, fps);
110
111        remoteConnector.addTopic("pcl", rgbd->pcl);
112        pipeline.start();
113        remoteConnector.registerPipeline(pipeline);
114
115        auto device = pipeline.getDefaultDevice();
116        device->setIrLaserDotProjectorIntensity(0.7);
117
118        std::cout << "Pipeline started with depth source: " << depthSourceArg << std::endl;
119
120        // Main loop
121        while(isRunning && pipeline.isRunning()) {
122            int key = remoteConnector.waitKey(1);
123            if(key == 'q') {
124                std::cout << "Got 'q' key from the remote connection!" << std::endl;
125                break;
126            }
127        }
128
129        std::cout << "Pipeline stopped." << std::endl;
130
131    } catch(const std::exception& e) {
132        std::cerr << "Error: " << e.what() << std::endl;
133        return EXIT_FAILURE;
134    }
135
136    return EXIT_SUCCESS;
137}

1import time
2import depthai as dai
3import sys
4import numpy as np
5
6try:
7    import open3d as o3d
8except ImportError:
9    sys.exit(
10        "Critical dependency missing: Open3D. Please install it using the command: '{} -m pip install open3d' and then rerun the script.".format(
11            sys.executable
12        )
13    )
14
15
16class O3DNode(dai.node.ThreadedHostNode):
17    def __init__(self):
18        dai.node.ThreadedHostNode.__init__(self)
19        self.inputPCL = self.createInput()
20
21    def run(self):
22        def key_callback(vis, action, mods):
23            global isRunning
24            if action == 0:
25                isRunning = False
26
27        vis = o3d.visualization.VisualizerWithKeyCallback()
28        vis.create_window()
29        vis.register_key_action_callback(81, key_callback)
30        pcd = o3d.geometry.PointCloud()
31        coordinateFrame = o3d.geometry.TriangleMesh.create_coordinate_frame(
32            size=1000, origin=[0, 0, 0]
33        )
34        vis.add_geometry(coordinateFrame)
35        first = True
36        while self.mainLoop():
37            try:
38                inPointCloud = self.inputPCL.tryGet()
39            except dai.MessageQueue.QueueException:
40                return # Pipeline closed
41            if inPointCloud is not None:
42                points, colors = inPointCloud.getPointsRGB()
43                pcd.points = o3d.utility.Vector3dVector(points.astype(np.float64))
44                colors = (colors / 255.0).astype(np.float64)
45                pcd.colors = o3d.utility.Vector3dVector(np.delete(colors, 3, 1))
46                if first:
47                    vis.add_geometry(pcd)
48                    first = False
49                else:
50                    vis.update_geometry(pcd)
51            vis.poll_events()
52            vis.update_renderer()
53
54        vis.destroy_window()
55
56
57# Create pipeline
58
59with dai.Pipeline() as p:
60    fps = 30
61    # Define sources and outputs
62    left = p.create(dai.node.Camera)
63    right = p.create(dai.node.Camera)
64    color = p.create(dai.node.Camera)
65    stereo = p.create(dai.node.StereoDepth)
66    rgbd = p.create(dai.node.RGBD).build()
67    align = None
68    color.build()
69    o3dViewer = p.create(O3DNode)
70    left.build(dai.CameraBoardSocket.CAM_B)
71    right.build(dai.CameraBoardSocket.CAM_C)
72    out = None
73
74    stereo.setDefaultProfilePreset(dai.node.StereoDepth.PresetMode.DEFAULT)
75    stereo.setRectifyEdgeFillColor(0)
76    stereo.enableDistortionCorrection(True)
77
78    # Linking
79    left.requestOutput((640, 400)).link(stereo.left)
80    right.requestOutput((640, 400)).link(stereo.right)
81    platform = p.getDefaultDevice().getPlatform()
82    if platform == dai.Platform.RVC4:
83        out = color.requestOutput((640, 400), dai.ImgFrame.Type.RGB888i, enableUndistortion=True)
84        align = p.create(dai.node.ImageAlign)
85        stereo.depth.link(align.input)
86        out.link(align.inputAlignTo)
87        align.outputAligned.link(rgbd.inDepth)
88    else:
89        out = color.requestOutput(
90            (640, 400), dai.ImgFrame.Type.RGB888i, dai.ImgResizeMode.CROP, 30, True
91        )
92        stereo.depth.link(rgbd.inDepth)
93        out.link(stereo.inputAlignTo)
94    out.link(rgbd.inColor)
95
96    rgbd.pcl.link(o3dViewer.inputPCL)
97
98    p.start()
99    while p.isRunning():
100        time.sleep(1)

1import time
2import depthai as dai
3import sys
4
5from pathlib import Path
6installExamplesStr = Path(__file__).absolute().parents[1] / 'install_requirements.py --install_rerun'
7try:
8    import rerun as rr
9except ImportError:
10    sys.exit("Critical dependency missing: Rerun. Please install it using the command: '{} {}' and then rerun the script.".format(sys.executable, installExamplesStr))
11
12import cv2
13
14class RerunNode(dai.node.ThreadedHostNode):
15    def __init__(self):
16        dai.node.ThreadedHostNode.__init__(self)
17        self.inputPCL = self.createInput()
18
19
20    def run(self):
21        rr.init("", spawn=True)
22        rr.log("world", rr.ViewCoordinates.RDF)
23        rr.log("world/ground", rr.Boxes3D(half_sizes=[3.0, 3.0, 0.00001]))
24        while self.mainLoop():
25            try:
26                inPointCloud = self.inputPCL.get()
27            except dai.MessageQueue.QueueException:
28                return # Pipeline closed
29            if inPointCloud is not None:
30                points, colors = inPointCloud.getPointsRGB()
31                rr.log("world/pcl", rr.Points3D(points, colors=colors, radii=[0.01]))
32
33# Create pipeline
34
35with dai.Pipeline() as p:
36    fps = 30
37    # Define sources and outputs
38    left = p.create(dai.node.Camera)
39    right = p.create(dai.node.Camera)
40    color = p.create(dai.node.Camera)
41    stereo = p.create(dai.node.StereoDepth)
42    rgbd = p.create(dai.node.RGBD).build()
43    align = None
44    color.build()
45    rerunViewer = p.create(RerunNode)
46    left.build(dai.CameraBoardSocket.CAM_B)
47    right.build(dai.CameraBoardSocket.CAM_C)
48    out = None
49
50    stereo.setRectifyEdgeFillColor(0)
51    stereo.enableDistortionCorrection(True)
52    stereo.setDefaultProfilePreset(dai.node.StereoDepth.PresetMode.DEFAULT)
53    stereo.initialConfig.postProcessing.thresholdFilter.maxRange = 10000
54    rgbd.setDepthUnits(dai.StereoDepthConfig.AlgorithmControl.DepthUnit.METER)
55
56    # Linking
57    left.requestOutput((640, 400)).link(stereo.left)
58    right.requestOutput((640, 400)).link(stereo.right)
59    platform = p.getDefaultDevice().getPlatform()
60
61    if platform == dai.Platform.RVC4:
62        out = color.requestOutput((640,400), dai.ImgFrame.Type.RGB888i, enableUndistortion=True)
63        align = p.create(dai.node.ImageAlign)
64        stereo.depth.link(align.input)
65        out.link(align.inputAlignTo)
66        align.outputAligned.link(rgbd.inDepth)
67    else:
68        out = color.requestOutput((640,400), dai.ImgFrame.Type.RGB888i, dai.ImgResizeMode.CROP, 30, True)
69        stereo.depth.link(rgbd.inDepth)
70        out.link(stereo.inputAlignTo)
71    out.link(rgbd.inColor)
72
73    rgbd.pcl.link(rerunViewer.inputPCL)
74
75    p.start()
76    while p.isRunning():
77        time.sleep(1)

1#include "depthai/capabilities/ImgFrameCapability.hpp"
2#include "depthai/depthai.hpp"
3#include "rerun.hpp"
4#include "rerun/archetypes/depth_image.hpp"
5
6class RerunNode : public dai::NodeCRTP<dai::node::ThreadedHostNode, RerunNode> {
7   public:
8    constexpr static const char* NAME = "RerunNode";
9
10   public:
11    Input inputPCL{*this, {.name = "inPCL", .types = {{dai::DatatypeEnum::PointCloudData, true}}}};
12    Input inputRGBD{*this, {.name = "inRGBD", .types = {{dai::DatatypeEnum::RGBDData, true}}}};
13
14    void run() override {
15        const auto rec = rerun::RecordingStream("rerun");
16        rec.spawn().exit_on_failure();
17        rec.log_static("world", rerun::ViewCoordinates::RDF);
18        while(mainLoop()) {
19            auto pclIn = inputPCL.get<dai::PointCloudData>();
20            auto rgbdIn = inputRGBD.get<dai::RGBDData>();
21            if(pclIn != nullptr) {
22                std::vector<rerun::Position3D> points;
23                std::vector<rerun::Color> colors;
24                const auto& size = pclIn->getWidth() * pclIn->getHeight();
25                points.reserve(size);
26                colors.reserve(size);
27                const auto& pclData = pclIn->getPointsRGB();
28                for(size_t i = 0; i < size; ++i) {
29                    points.emplace_back(pclData[i].x, pclData[i].y, pclData[i].z);
30                    colors.emplace_back(pclData[i].r, pclData[i].g, pclData[i].b);
31                }
32                rec.log("world/obstacle_pcl", rerun::Points3D(points).with_colors(colors).with_radii({0.01f}));
33                auto rgbFrame = rgbdIn->getRGBFrame();
34                if(!rgbFrame.has_value()) continue;
35                auto colorFrame = std::get<std::shared_ptr<dai::ImgFrame>>(rgbFrame.value())->getCvFrame();
36                cv::cvtColor(colorFrame, colorFrame, cv::COLOR_BGR2RGB);
37                rec.log("rgb",
38                        rerun::Image(reinterpret_cast<const uint8_t*>(colorFrame.data),
39                                     {static_cast<uint32_t>(colorFrame.cols), static_cast<uint32_t>(colorFrame.rows)},
40                                     rerun::datatypes::ColorModel::RGB));
41            }
42        }
43    }
44};
45int main() {
46    using namespace std;
47    // Create pipeline
48    dai::Pipeline pipeline;
49    // Define sources and outputs
50    auto left = pipeline.create<dai::node::Camera>();
51    auto right = pipeline.create<dai::node::Camera>();
52    auto stereo = pipeline.create<dai::node::StereoDepth>();
53    auto rgbd = pipeline.create<dai::node::RGBD>()->build();
54    auto color = pipeline.create<dai::node::Camera>();
55    std::shared_ptr<dai::node::ImageAlign> align;
56    auto rerun = pipeline.create<RerunNode>();
57    color->build();
58
59    left->build(dai::CameraBoardSocket::CAM_B);
60    right->build(dai::CameraBoardSocket::CAM_C);
61    stereo->setSubpixel(true);
62    stereo->setExtendedDisparity(false);
63    stereo->setDefaultProfilePreset(dai::node::StereoDepth::PresetMode::DEFAULT);
64    stereo->setLeftRightCheck(true);
65    stereo->setRectifyEdgeFillColor(0);  // black, to better see the cutout
66    stereo->enableDistortionCorrection(true);
67    stereo->initialConfig->setLeftRightCheckThreshold(10);
68    stereo->initialConfig->postProcessing.thresholdFilter.maxRange = 10000;
69    rgbd->setDepthUnit(dai::StereoDepthConfig::AlgorithmControl::DepthUnit::METER);
70
71    left->requestOutput(std::pair<int, int>(640, 400))->link(stereo->left);
72    right->requestOutput(std::pair<int, int>(640, 400))->link(stereo->right);
73
74    auto platform = pipeline.getDefaultDevice()->getPlatform();
75    if(platform == dai::Platform::RVC4) {
76        auto* out = color->requestOutput(std::pair<int, int>(640, 400), dai::ImgFrame::Type::RGB888i, dai::ImgResizeMode::CROP, std::nullopt, true);
77        out->link(rgbd->inColor);
78        align = pipeline.create<dai::node::ImageAlign>();
79        stereo->depth.link(align->input);
80        out->link(align->inputAlignTo);
81        align->outputAligned.link(rgbd->inDepth);
82    } else {
83        auto* out = color->requestOutput(std::pair<int, int>(640, 400), dai::ImgFrame::Type::RGB888i, dai::ImgResizeMode::CROP, 30, true);
84        out->link(rgbd->inColor);
85        out->link(stereo->inputAlignTo);
86        stereo->depth.link(rgbd->inDepth);
87    }
88
89    // Linking
90    rgbd->pcl.link(rerun->inputPCL);
91    rgbd->rgbd.link(rerun->inputRGBD);
92    pipeline.start();
93    auto device = pipeline.getDefaultDevice();
94    device->setIrLaserDotProjectorIntensity(0.7);
95    pipeline.wait();
96}
